Cross-Shaft Precision Press
High precision press featuring cross-shaft design for minimal torque transmission loss and superior accuracy.
Product Overview
Standard Equipment | Optional Equipment |
|---|---|
|
|
FRAME CONSTRUCTION
Cross Shaft Precision Press fabricated from IS-2062 graded rolled steel plates. Frame is deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed. High Precision Transmission Gear: The high accurately machined gear system provides smooth and silent operation.
TABLE & SLIDE (RAM)
Table and Slide are made of high grade heavy duty cast iron and properly seasoned. They are perfectly aligned, to each other to obtain high accuracy and precession press operation.
LONG HEXAGONAL GIBS
Durable alloy bronze lining fixed directly on the frame without the defect of losing adjusting bolts. Durable lining can also maintain high accuracy and extend the life of tooling.
FLYWHEEL
Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the cutting operations, and properly balanced for smooth running.
HIGH QUALITY CRANK SHAFT
The strong crank shaft with outstanding rigidity ensures that accuracy can be maintained under qualified standard and extends the life of tooling.
MOTORIZED SLIDE ADJUSTING DEVICE
The Motorized slide adjusting device is adopted with a thin brake motor and operated with push buttons. It provides stable positioning accuracy and quick adjustment.
AUTO LUBRICATION SYSTEM
The auto lubrication system with default monitor ensures high reliable operation.
DUAL SAFETY VALVE
The interlock mechanism on the dual valve keeps the clutch and brake from mis-actuation when valve is default.
DIE HEIGHT INDICATOR
Motorized slide adjusting devise fitted with 0.1 mm increment digital die height indicator.
HYDRAULIC OVERLOAD PROTECTOR
The Hydraulic overload protector is installed to prevent the overloading from exceeding the rating capacity tonnage and protect press and tooling from damage. The simple resetting process makes the restart operation easily.
PNEUMATIC DRY CLUTCH
The fail-safe, pneumatically operated clutch brake combination is designed to provide excellent slide motion control even at high speeds. Adequate energy required for blanking operation is ensured by optimised design of the flywheel.

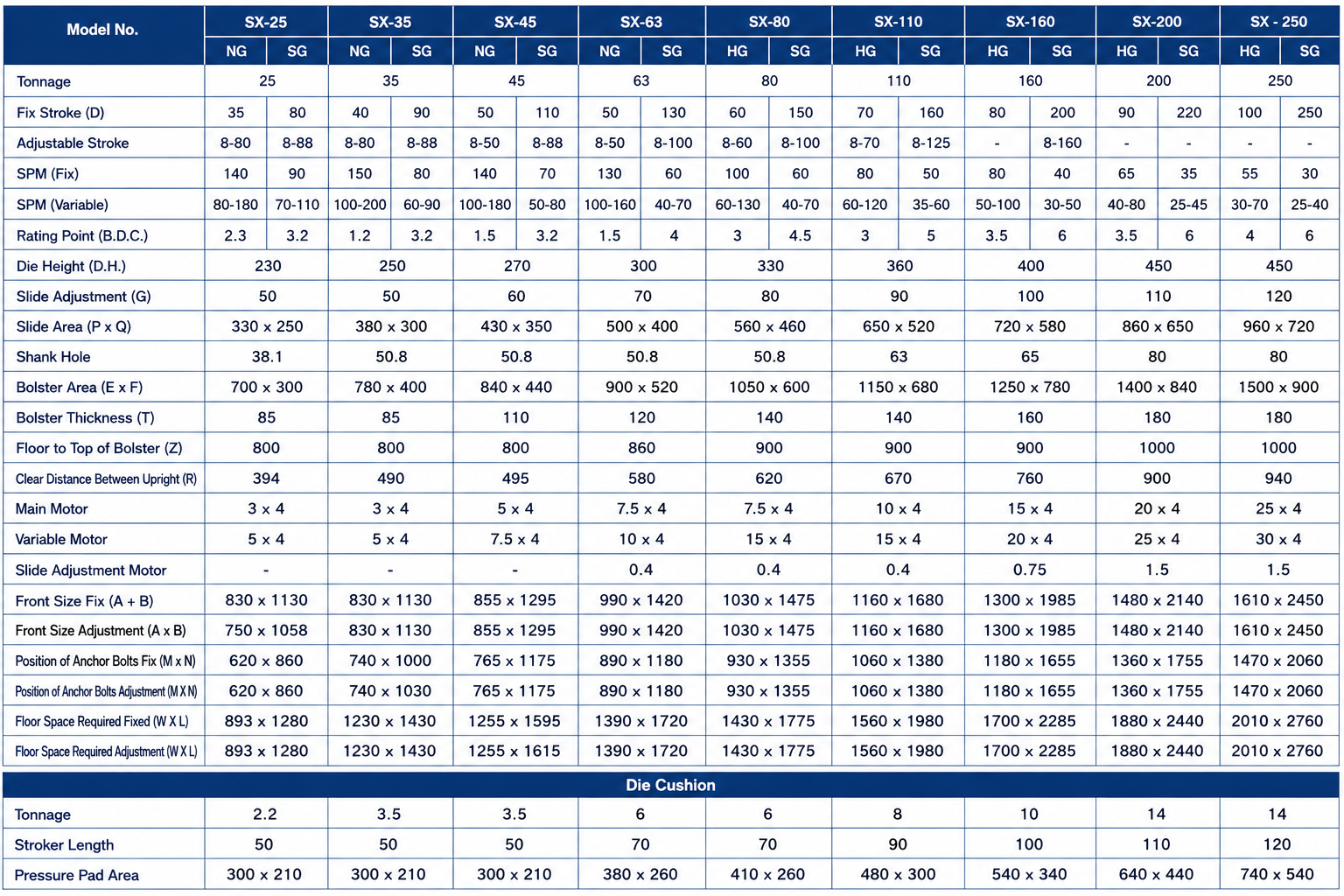

Technical Specifications
Standard Model
* Note: custom specifications can be engineered upon request to match specific industrial limits.
