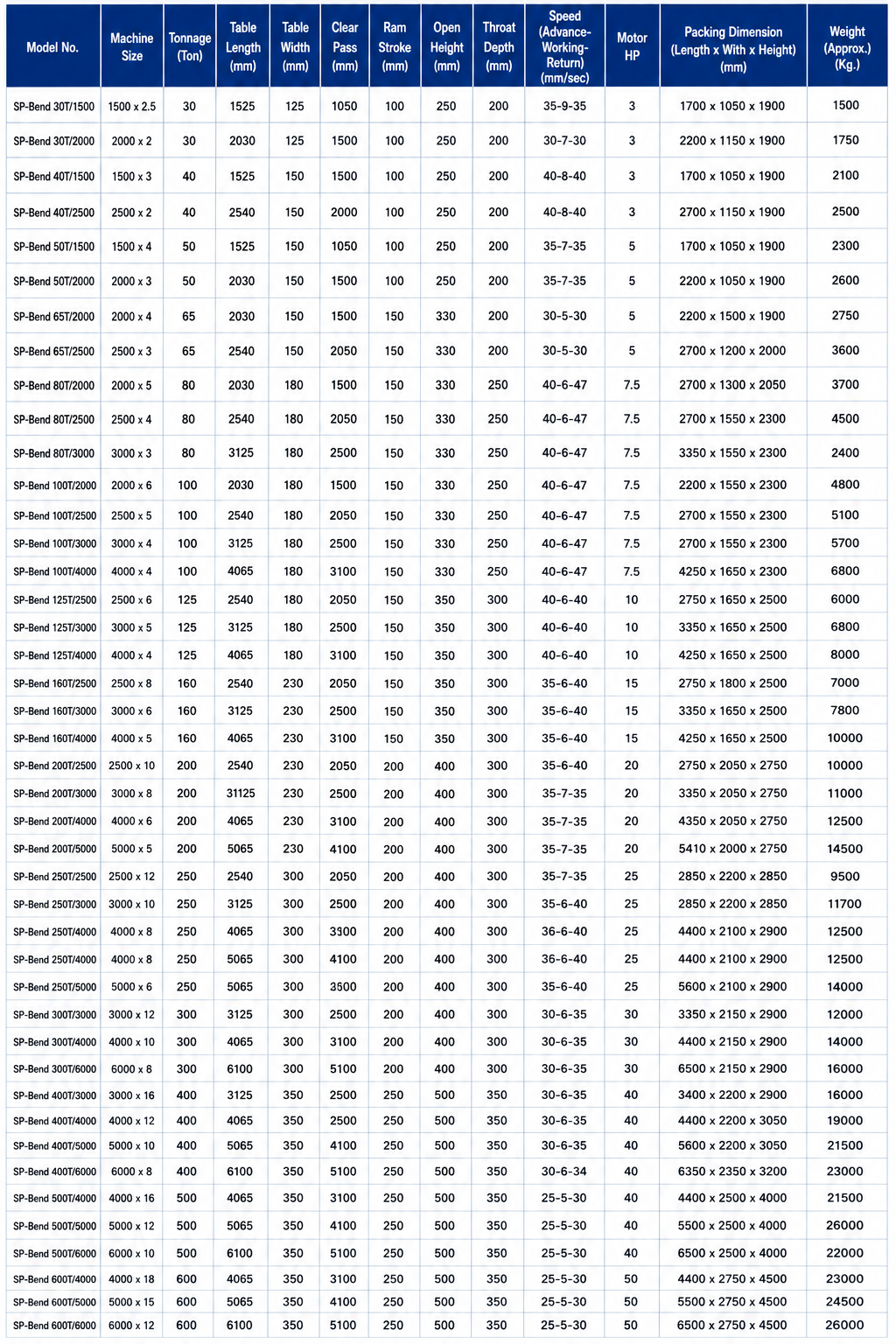

Hydraulic Press Brakes (Rear Cylinder)

FRAME CONSTRUCTION

Frame is made of steel fabrication construction of interlock robust design. Bending machine are constructed with safe guard against undesired deflections and breakage. This frame distributes the stresses, supporting the bed directly on the frame. The double support shoe of frame gap provide extremely high rigidity, alignment, accuracy and
keeps frame structure at the right angles to the bed.

TABLE & SLIDE (RAM)

Table and upper beam are straight and parallel of the working surface under the rated load. The table is accurately machined and upper surface is grinded to keep the die in correct alignment. The upper beam is guided and supported throughout the stroke by accurately machines guide ways.

TOOLING

Tooling is manufactured strictly as per standard EN-31. Every step from designing metallurgical specification, heat-treatment grinding and inspection is carefully controlled. The tooling are standardized and easily replaced.

CYLINDER

The cylinder bodies are precisely made from forged steel material duly bored and fine honed or long sealing life. The piston rods are made from EN-8 material having low carbon contents. The piston rod is hard chrome platted (0.200 micron).

HYDRAULIC SYSTEM

The compact blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low noise hydraulic system is placed on the rear side of sheet metal bending machine, on the rear side of machine, on top between two side plates. Pressure relief values is provided to safe guard the system and machine from overload. The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.

ELECTRICAL CONTROL PANEL

The electrical control panel is located on the left hand side of the sheet metal bending machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if need to be replaced. It is wire cleanly and labeled/ferruled properly as per the international practices to help easily locates any fault and replaces components conveniently.

ACCURATE GAUGING

The rigid and accurate construction of the back gauge provided with bending machine allows consistency in width of sheet being Bend.
